Processor
Intel Xeon E-2314 Processor (8M Cache, 2.80 GHz, 2.80 GHz, 4 cores)
Operating System
No Operating System
Chipset
Intel® C256 series
Memory
16GB
DIMM Speed
Up to 3200 MT/s
Note: For Pentium® processor, maximum memory speed supported is 2666 MT/s
Memory Type
UDIMM
Memory Module Slots
4 DDR4 DIMM slots
Maximum RAM
UDIMM 128 GB
Storage
2TB 3.5”
Front Bays
Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
Storage Controllers
Internal Controllers
PERC H355
External Controllers
HBA355e, 12 Gbps SAS Ext. HBA
Software RAID
S150
Internal Boot
USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
RACADM CLI
IPMI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
300 W Bronze AC/100-240 V
Cabled power supply
Ports
Network Options
2 x 1 GbE LOM
Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 3.0

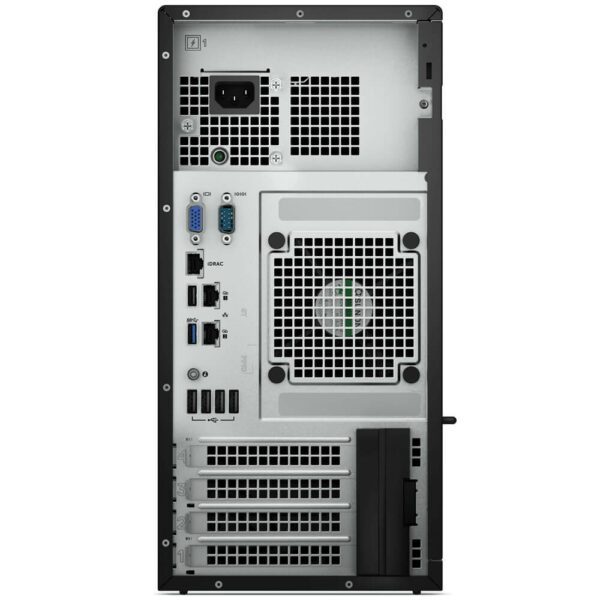

Rear Ports
5 x USB 2.0
1 x USB 3.0
1 x VGA
1 x Serial Port
1 x iDRAC dedicated NIC port
2 x NIC port
Internal ports
1 x USB 3.0 (optional)
Slots
PCIe
2 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
Chassis
One fan
Bezel
Security bezel
Form Factor
4U mini tower server
Dimensions & Weight
Height: 14.17 in. (360 mm)
Width: 6.88 in. (175 mm)
Depth with Bezel: 33.48 in. (453.75 mm)
Weight: 25.74 lbs. (11.68 kg)*
Rack Support
System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
Regulatory
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
