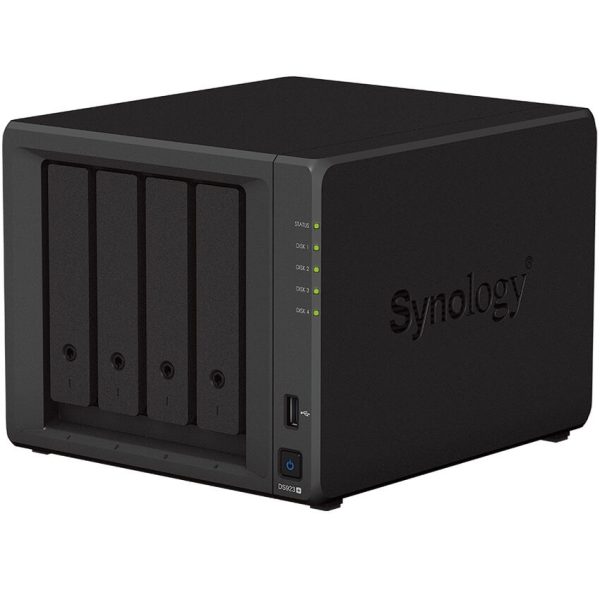

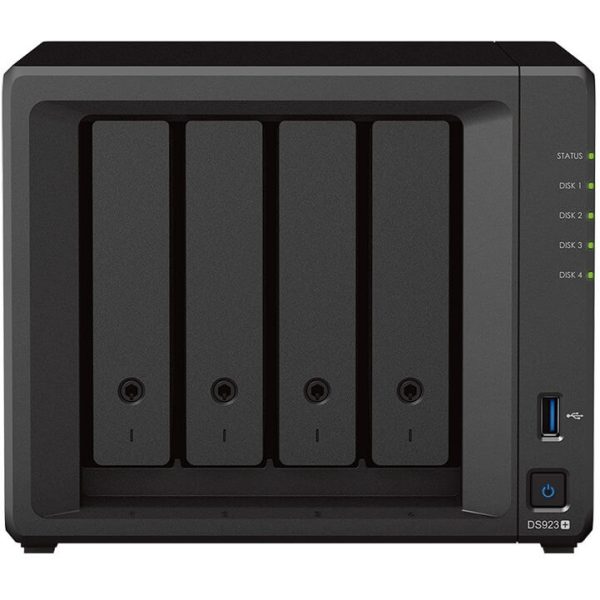

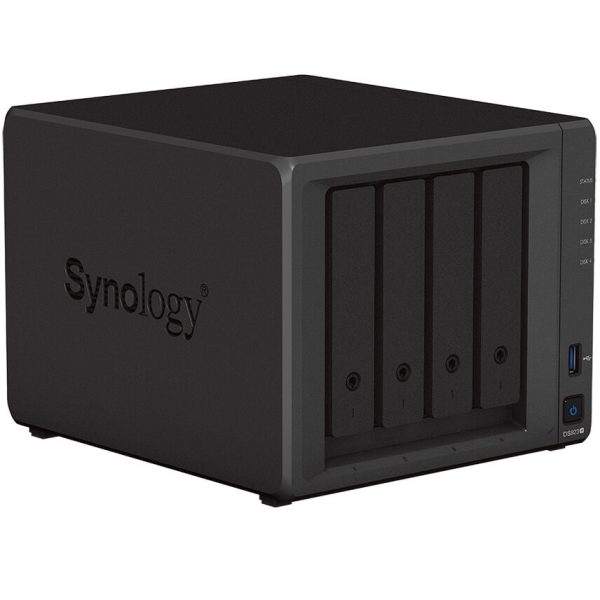

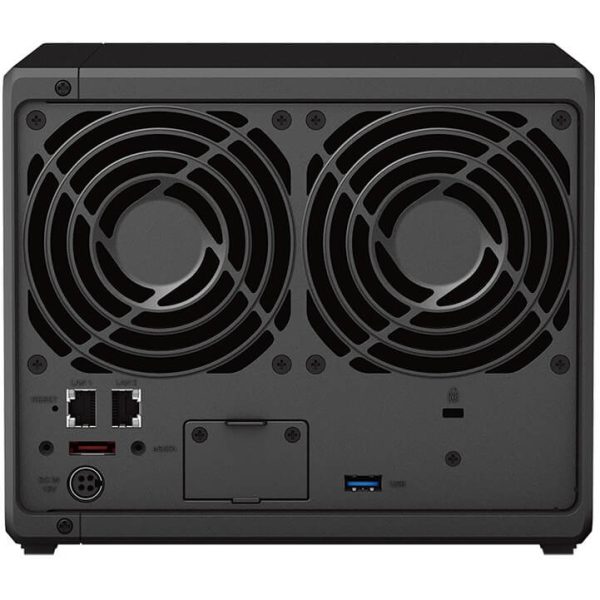

Synology DiskStation DS923+ 4-Bay NAS Enclosure (DS923+)

Hardware Specifications
CPU
CPU Model
AMD Ryzen R1600

CPU Quantity
1

CPU Core
2

CPU Architecture
64-bit

CPU Frequency
2.6 (base) / 3.1 (turbo) GHz

Hardware Encryption Engine
Yes

Memory
System Memory
4 GB DDR4 ECC SODIMM

Memory Module Pre-installed
4 GB (4 GB x 1)

Total Memory Slots
2

Maximum Memory Capacity
32 GB (16 GB x 2)

Storage
Drive Bays
4

Maximum Drive Bays with Expansion Unit
9 (DX517 x 1)

M.2 Drive Slots
2 (NVMe)

Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD

Hot Swappable Drive
Yes

External Ports
RJ-45 1GbE LAN Port
2

USB 3.2 Gen 1 Port
2

Expansion Port
1

Expansion Port Type
eSATA

PCIe
PCIe Expansion
1 x Gen3 x2 network upgrade slot

Appearance
Size (Height x Width x Depth)
166 mm x 199 mm x 223 mm

Weight
2.24 kg

Others
System Fan
92 mm x 92 mm x 2 pcs

Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode

Brightness Adjustable Front LED Indicators
Yes

Power Recovery
Yes

Noise Level
22.9 dB(A)

Scheduled Power On / Off
Yes

Wake on LAN / WAN
Yes

Power Supply Unit / Adapter
100 watts

AC Input Power Voltage
100V to 240V AC

Power Frequency
50/60 Hz, Single Phase

Power Consumption
35.51 watts (Access)
11.52 watts (HDD Hibernation)

British Thermal Unit
121.09 BTU/hr (Access)
39.28 BTU/hr (HDD Hibernation)

Temperature
Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-20°C to 60°C (-5°F to 140°F)

Relative Humidity
5% to 95% RH

Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS

Warranty
3-year hardware warranty, extendable to 5 years with Extended Warranty Plus

Environment
RoHS Compliant

Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
