Hardware Specifications
CPU
CPU Model
AMD Ryzen R1600
CPU Quantity
1
CPU Core
2
CPU Architecture
64-bit
CPU Frequency
2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine
Yes
Memory
System Memory
8 GB DDR4 ECC SODIMM
Memory Module Pre-installed
8 GB (8 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Storage
Drive Bays
5
Maximum Drive Bays with Expansion Unit
15 (DX517 x 2)
M.2 Drive Slots
2 (NVMe)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
Hot Swappable Drive
Yes

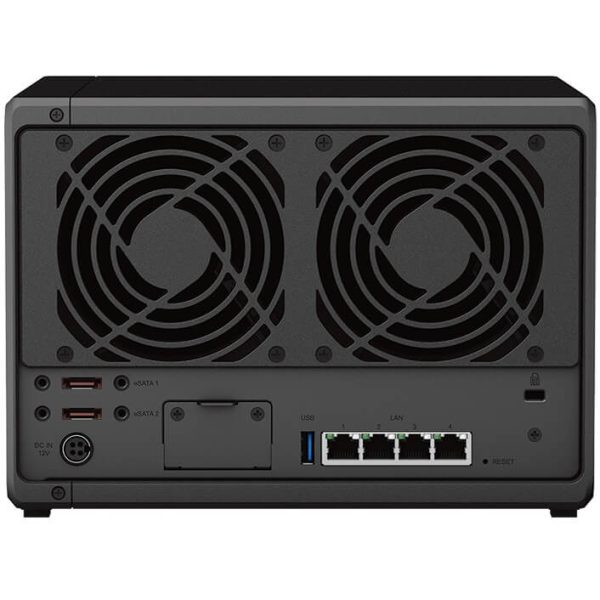

External Ports
RJ-45 1GbE LAN Port
4
USB 3.2 Gen 1 Port
2
Expansion Port
2
Expansion Port Type
eSATA
PCIe
PCIe Expansion
1 x Gen3 x2 network upgrade slot
Appearance
Size (Height x Width x Depth)
166 mm x 230 mm x 223 mm
Weight
2.7 kg
Others
System Fan
92 mm x 92 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
22.90 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
120 watts
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
52.06 watts (Access)
16.71 watts (HDD Hibernation)
British Thermal Unit
177.64 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS
Warranty
3-year hardware warranty
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
