Specifications

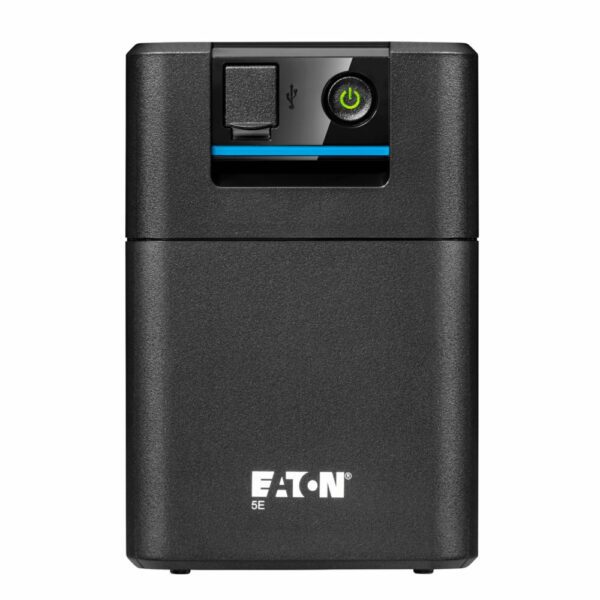

Eaton 5E Gen2 700VA/360W Line Interactive UPS (5E700UI) – Voltage: 230V, Wattage: 360 W, Input Frequency Range: 50 / 60 Hz (46 – 65 Hz working range), VA Rating: 700VA, Communication: 1 x USB port
What's in the Box
Eaton 5E Gen2 700VA/360W Line Interactive UPS (5E700UI), Documentation
Warranty
2 Year Limited Carry-in Warranty
Technical Specifications
Rating (VA/W)
700VA/360W
Electrical Characteristics
Technology
Line Interactive
Input
Nominal Voltage
220 - 240 V
Input Voltage Windows without Using Battery
140 - 300 V
Output Voltage
230V (adjustable to 220V/230V/240V)
Input Frequency Range
50 / 60 Hz (46 - 65 Hz working range)
Connection
Output Connection (FR, DIN/IT, BS models)
2 national outlets
USB communication port
Output Connection (IEC models)
4 IEC C13 outlets
Battery
Typical backup time for 1 PC
14 min
Typical Backup Time for 2 PC
5 min
Battery Management
Constant battery recharge, cold start
Operating Conditions, Standards and Approvals
Noise level
< 25dBA
Certifications
EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr
Compliances
EU Directives: LVD (CB report); EMC; RoHS; WEEE; Packaging; Batteries
Dimensions D x H x W / Weight
UPS Dimensions (mm)
288 x 148 x 100
UPS Weight (kg)
4.4
