Specifications

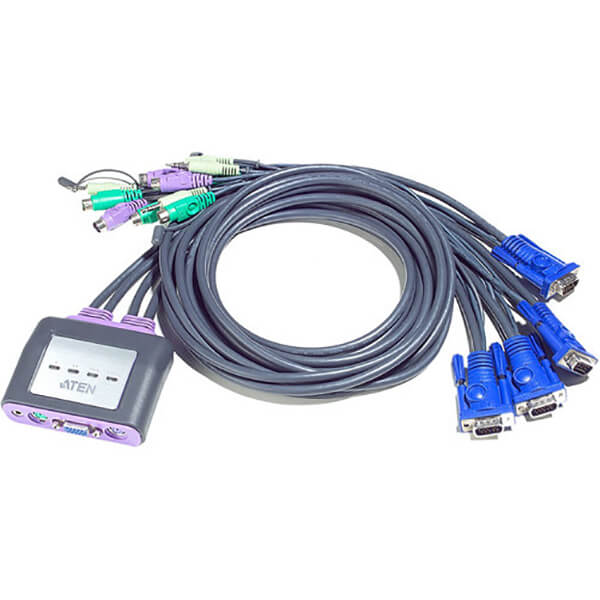

ATEN 4-Port PS/2 VGA/Audio Cable KVM Switch (CS64A) – Video: 2048 x 1536; DDC2B, Power Consumption: DC5V:0.41W:6BTU, Computer Connections: 4, Port Selection: Hot key, Keyboard / Mouse: PS/2, Connectors: Console Ports:1 x HDB-15 Female (Blue),1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x 3.5mm Audio Jack Female (Green), KVM Ports: 4 x HDB-15 Male (Blue), 4 x 6-pin Mini-DIN Male (Purple), 4 x 6-pin Mini-DIN Male (Green), 4 x 3.5mm Audio Jack Male(Green)
What's in the Box
ATEN 4-Port PS/2 VGA/Audio Cable KVM Switch (CS64A) with Attached Cables, 1x User Instructions
Computer Connections
4
Port Selection
Hotkey
Connectors
Console Ports
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x 3.5mm Audio Jack Female (Green)
KVM Ports
4 x HDB-15 Male (Blue)
4 x 6-pin Mini-DIN Male (Purple)
4 x 6-pin Mini-DIN Male (Green)
4 x 3.5mm Audio Jack Male(Green)
LEDs
Selected
4 x Green
Cable Length
Computer
4 x 1.8 m
Emulation
Keyboard / Mouse
PS/2
Video
2048 x 1536; DDC2B
Scan Interval
5 seconds
Power Consumption
DC5V:0.41W:6BTU
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.67 kg ( 1.48 lb )
Dimensions (L x W x H)
7.86 x 7.86 x 3.06 cm
(3.09 x 3.09 x 1.2 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
