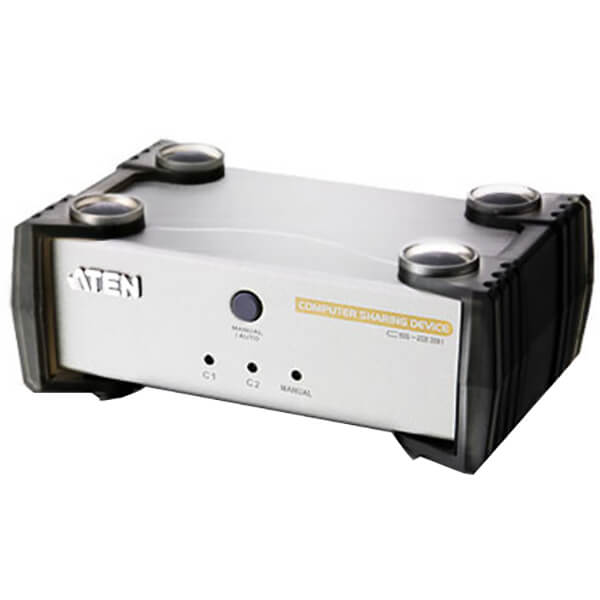

ATEN USB VGA Computer Sharing Device (CS231C)

Computer Connections
1

Console Selection
Pushbutton, Hotkey*
Note: * Selecting console via hotkey only works in Manual Mode.

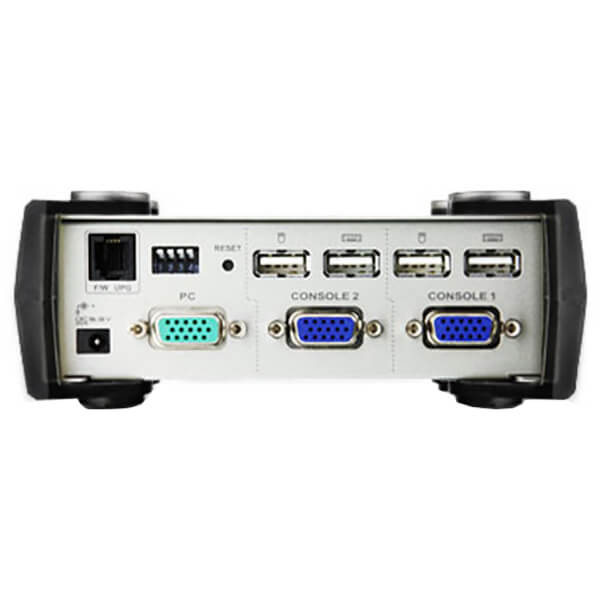

Connectors

Console Ports
2 x HDB-15 Female (Blue)
4 x USB Type A Female

KVM Ports
1 x SPHD-15 Female (Green)

Firmware Upgrade
1 x RJ-11 Female

Power
1 x DC Jack (Black)

Switches

Mode Selection
1 x Pushbutton

Reset
1 x Semi-recessed Pushbutton

DIP
1 x 4 pin

LEDs

Selected
2 (Green)
Manual
1 (Orange)

Video
1920 x 1440

Power Consumption
DC5.3V:1.6W:16

Environmental

Operating Temperature
0-50˚C

Storage Temperature
-20-60˚C

Humidity
0-80% RH, Non-condensing

Physical Properties

Housing
Metal

Weight
0.56 kg ( 1.23 lb )

Dimensions (L x W x H)
14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
