ATEN 8-Port USB DVI Secure KVM Switch PSS PP v3.0 Compliant (CS1188D)

SKU: CS1188D

R22,789.00 Incl. VAT

Out of stock

Want to be notified when this product is back in stock?

Specifications

ATEN 8-Port USB DVI Secure KVM Switch PSS PP v3.0 Compliant (CS1188D) – Video: 3840×2160@30Hz; DVI Dual Link: 2560×1600; DVI Single Link: 1920×1200 DVI-A: 2048×1536, Power: 1 x 3-prong AC Socket, Power Consumption: AC110V:8.3W:67BTU, AC220V:8.2W:67BTU, Computer Connections: 8, Port Selection: Push button, Keyboard / Mouse: USB, Connectors: Console Ports:2 x USB Type-A Female (White), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x DVI-I Dual Link Female (White), 1 x Mini Stereo Jack Female (Green; front panel), KVM Ports: 16 x USB Type-B Female (White), 8 x DVI-I Dual Link Female (White), 8 x Mini Stereo Jack Female (Green), USB CAC Port: 1 x USB Type-A Female (White; front panel)

What's in the Box

ATEN 8-Port USB DVI Secure KVM Switch PSS PP v3.0 Compliant (CS1188D), 1x Power Cord, 1x User Instructions

Computer Connections
8

Port Selection
Pushbutton

Connectors

Console Ports
2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x DVI-I Dual Link Female (White)
1 x Mini Stereo Jack Female (Green; front panel)

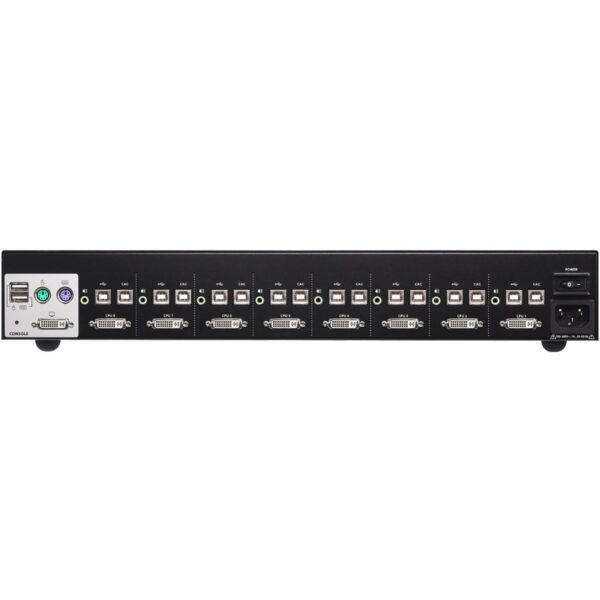

KVM Ports
16 x USB Type-B Female (White)
8 x DVI-I Dual Link Female (White)
8 x Mini Stereo Jack Female (Green)

Power
1 x 3-prong AC Socket

USB CAC Port
1 x USB Type-A Female (White; front panel)

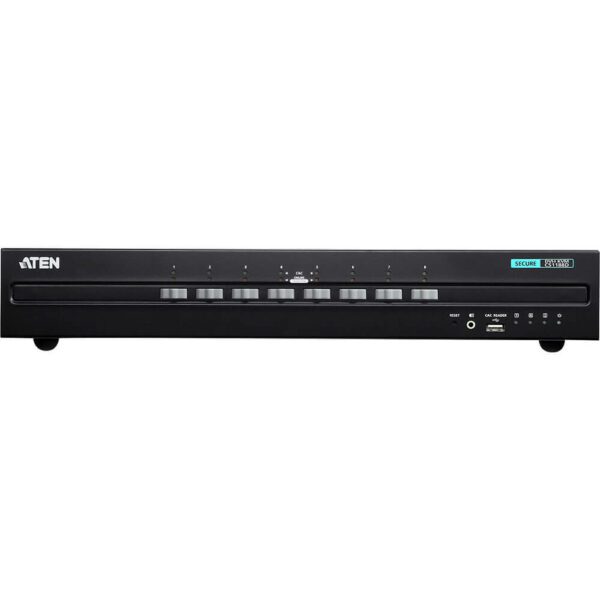

Switches

Port Selection
8 x Pushbuttons

Reset
1 x Semi-recessed Pushbutton

Power
1 x Rocker

LEDs

Power
1 (Blue)

Online / Selected (KVM Port)
8 (Orange)

Online / Selected (CAC Port)
8 (Green)

Video
1 (Green)

Key Lock
3 (Green)

Emulation

Keyboard / Mouse
USB

Video
3840x2160@30Hz*; DVI Dual Link: 2560x1600;
DVI Single Link: 1920x1200
DVI-A: 2048x1536

Maximum Input Power Rating
100ā€“240V~; 50-60 Hz; 1A

Power Consumption
AC110V:8.3W:67BTU
AC220V:8.2W:67BTU

Environmental
Operating Temperature
0-50Ā°C

Storage Temperature
-20-60Ā°C

Humidity
0 - 80% RH, Non-condensing

Physical Properties

Housing
Metal

Weight
3.35 kg ( 7.38 lb )

Dimensions (L x W x H)
43.24 x 20.49 x 6.55 cm
(17.02 x 8.07 x 2.58 in.)

Note
* DVI Secure KVM Switches support up to 3840 x 2160 @ 30 Hz video output on compatible HDMI-interfaced monitors/computers with ATEN DVI-to-HDMI KVM cables.

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
