Specifications

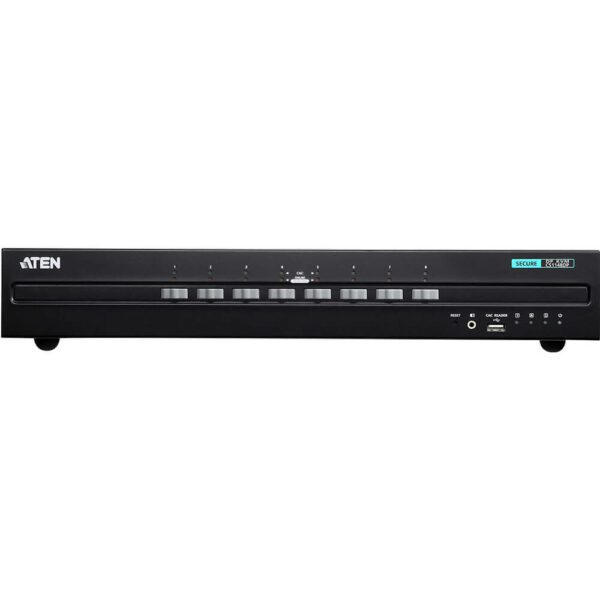

ATEN 8-Port USB DisplayPort Dual Display Secure KVM Switch PSS PP v3.0 Compliant (CS1148DP) – Video: Max. 3840 x 2160 @ 30 Hz (UHD), Power: 1 x 3-prong AC Socket, Power Consumption: AC110V:15.8W:93BTU, AC220V:15.3W:91BTU, Computer Connections: 8, Port Selection: Push button, Keyboard / Mouse: USB, Connectors: Console Ports: 2 x USB Type-A Female (White), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 2 x HDMI Female (Black), 1 x Mini Stereo Jack Female (Green; front panel), KVM Ports: 16 x USB Type-B Female (White), 16 x DisplayPort Female (Black), 8 x Mini Stereo Jack Female (Green), USB CAC Port: 1 x USB Type-A Female (White; front panel)
What's in the Box
ATEN 8-Port USB DisplayPort Dual Display Secure KVM Switch PSS PP v3.0 Compliant (CS1148DP), 1x Power Cord, 1x User Instructions
Computer Connections
8
Port Selection
Pushbutton
Connectors
Console Ports
2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
2 x HDMI Female (Black)
1 x Mini Stereo Jack Female (Green; front panel)

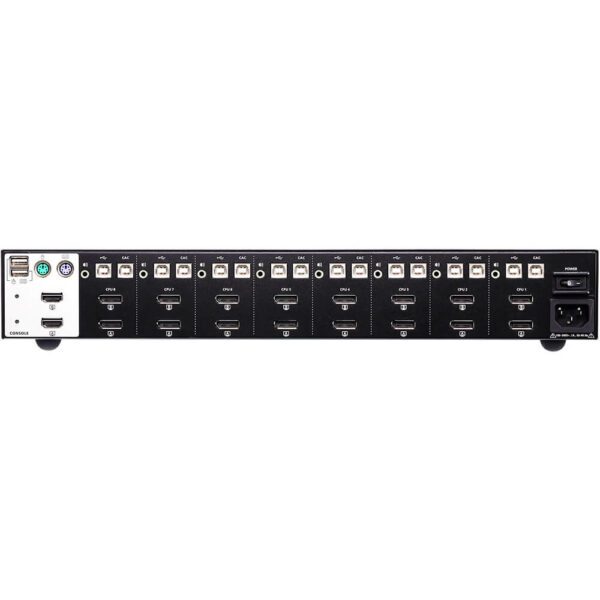

KVM Ports
16 x USB Type-B Female (White)
16 x DisplayPort Female (Black)
8 x Mini Stereo Jack Female (Green)
Power
1 x 3-prong AC Socket
USB CAC Port
1 x USB Type-A Female (White; front panel)
Switches
Port Selection
8 x Pushbuttons
Reset
1 x Semi-recessed Pushbutton
Power
1 x Rocker
LEDs
Power
1 (Blue)
Online / Selected (KVM Port)
8 (Orange)
Online / Selected (CAC Port)
8 (Green)
Video
2 (Green)
Key Lock
3 (Green)
Emulation
Keyboard / Mouse
USB
Video
Max. 3840 x 2160 @ 30 Hz (UHD)
Maximum Input Power Rating
100ā240V~; 50-60 Hz; 1A
Power Consumption
AC110V:15.8W:93BTU
AC220V:15.3W:91BTU
Environmental
Operating Temperature
0-50Ā°C
Storage Temperature
-20-60Ā°C
Humidity
0 - 80% RH, Non-condensing
Physical
Properties
Housing
Metal
Weight
3.22 kg ( 7.09 lb )
Dimensions (L x W x H)
43.24 x 20.49 x 6.55 cm
(17.02 x 8.07 x 2.58 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
