Specifications
ATEN 4-Port USB HDMI Dual Display Secure KVM Switch PSS PP v3.0 Compliant (CS1144H) – Video: Max. 3840 x 2160 @ 30 Hz (UHD); 1920 x 1080 (FHD), Power: 1 x 3-prong AC Socket, Power Consumption:AC110V:3.9W:39BTU, AC220V:3.6W:37BTU, Computer Connections: 4, Port Selection: Push button, Keyboard / Mouse: USB, Connectors: Console Ports: 2 x USB Type-A Female (Black), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 2 x HDMI Female (Black), 1 x Mini Stereo Jack Female (Green; front panel), KVM Ports:8 x USB Type-B Female (White), 8 x HDMI Female (Black), 4 x Mini Stereo Jack Female (Green), USB CAC Port: 1 x USB Type-A Female (White; front panel)
What's in the Box
ATEN 4-Port USB HDMI Dual Display Secure KVM Switch PSS PP v3.0 Compliant (CS1144H), 1x Power Cord, 1x User Instructions
Computer Connections
4
Port Selection
Pushbutton

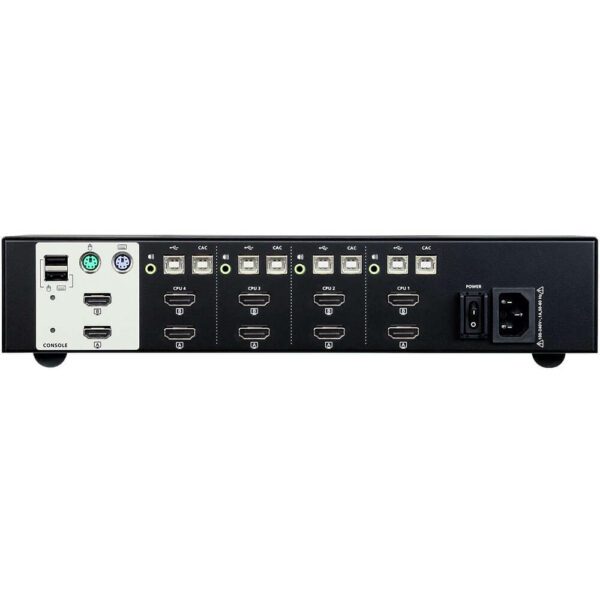

Connectors
Console Ports
2 x USB Type-A Female (Black)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
2 x HDMI Female (Black)
1 x Mini Stereo Jack Female (Green; front panel)
KVM Ports
8 x USB Type-B Female (White)
8 x HDMI Female (Black)
4 x Mini Stereo Jack Female (Green)
Power
1 x 3-prong AC Socket
USB CAC Port
1 x USB Type-A Female (White; front panel)

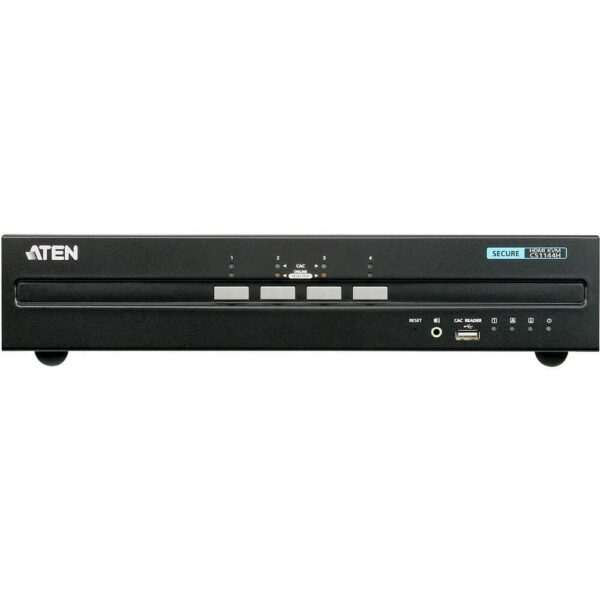

Switches
Port Selection
4 x Pushbuttons
Reset
1 x Semi-recessed Pushbutton
Power
1 x Rocker
LEDs
Power
1 (Blue)
Online / Selected (KVM Port)
4 (Orange)
Online / Selected (CAC Port)
4 (Green)
Video
2 (Green)
Key Lock
3 (Green)
Emulation
Keyboard / Mouse
USB
Video
Max. 3840 x 2160 @ 30 Hz (UHD); 1920 x 1080 (FHD)
Maximum Input Power Rating
100ā240V~; 50-60 Hz; 1A
Power Consumption
AC110V:3.9W:39BTU
AC220V:3.6W:37BTU
Environmental
Operating Temperature
0-50Ā°C
Storage Temperature
-20-60Ā°C
Humidity
0 - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
2.11 kg ( 4.65 lb )
Dimensions (L x W x H)
33.50 x 16.39 x 6.55 cm
(13.19 x 6.45 x 2.58 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
