Specifications

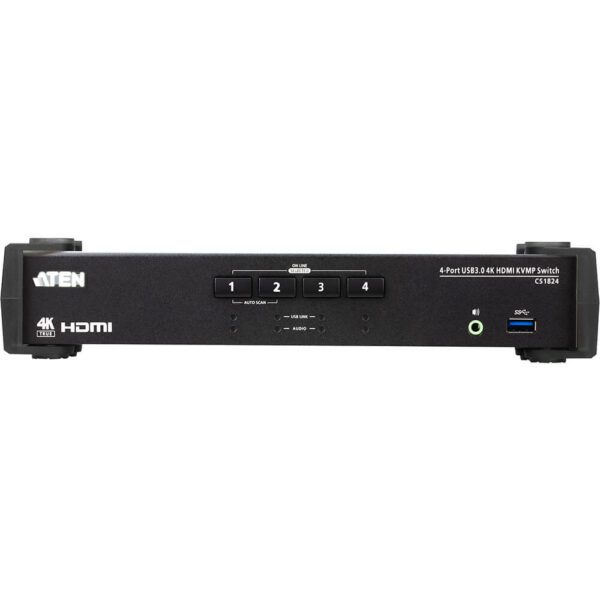

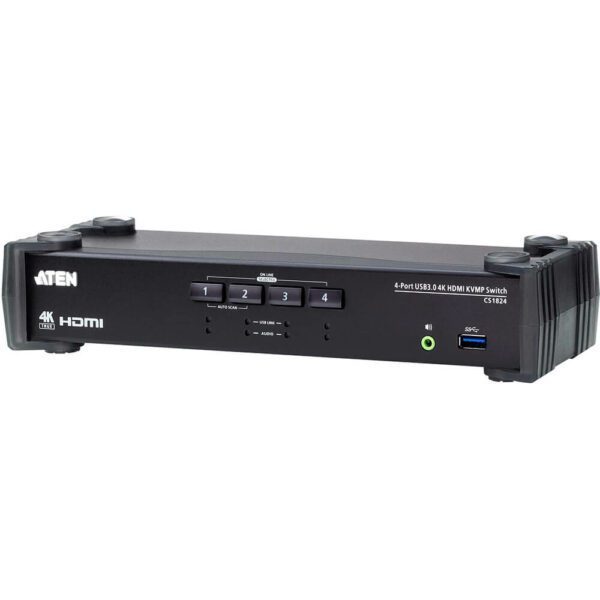

ATEN 4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode (CS1824) – Video: 4096 x 2160 @ 60Hz, Power: 1 x DC Jack, Power Consumption: DC5V:2.535W:54.5BTU, Computer Connections: 4, Port Selection: Hot key, Push button, Mouse, RS-232 Commands, Keyboard / Mouse: USB, Connectors: Console Ports: 2 x USB Type A Female, 1 x HDMI Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear), KVM Computer Ports: 4 x USB3.1 Gen1 Type B Female (Blue), 4 x HDMI Female (Black), 4 x 3.5mm Audio Jack Female (Green)
What's in the Box
ATEN 4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode (CS1824), 4x HDMI 2.0 Cables, 4x USB 3.0 Cables, 4x Audio Cables, 1x Power Adapter, 1x User Instructions
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports
2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

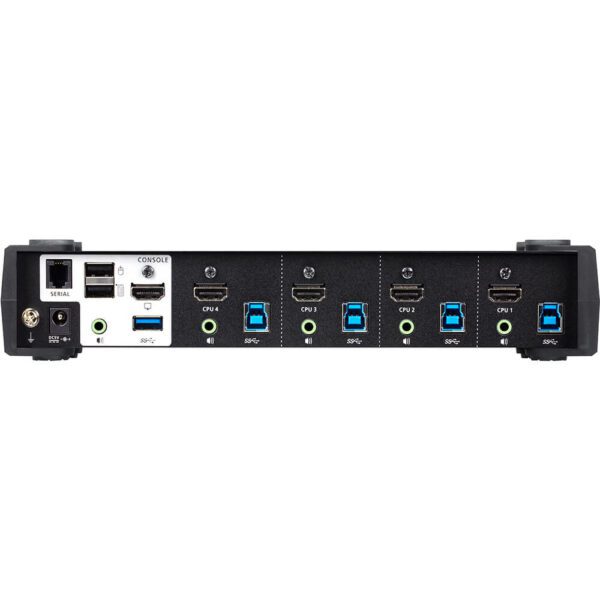

KVM (Computer) Ports
4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Serial
1 x RJ-11 Female
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected
4 x Pushbutton
LEDs
On Line /Selected
4 (Orange)
USB Link
4 (Green)
Audio
4 (Green)
Emulation
Keyboard / Mouse
USB
Video
Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval
1-99 Seconds (Default: 5 sec.)
Power Consumption
DC5V:2.535W:54.5BTU
Environmental
Operating Temperature
0-40Ā°C
Storage Temperature
-20-60Ā°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal, Plastic
Weight
0.94 kg ( 2.07 lb )
Dimensions (L x W x H)
27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
