Specifications

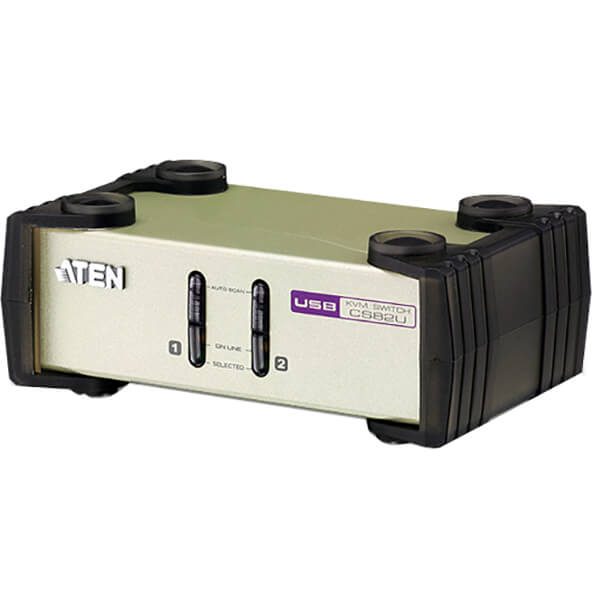

ATEN 2-Port PS/2-USB VGA KVM Switch (CS82U) – Video: 2048 x 1536 @ 60 Hz; DDC2B, Power: 1 x DC Jack, Power Consumption: DC5V:0.72W:12BTU, Computer Connections: 2, Port Selection; Hot key, Push button, USB Mouse, KVM Ports: 2 x SPHD-18 Female (Yellow), Keyboard / Mouse: PS/2, USB, Connectors: 1 x HDB-15 Female (Blue), 2 x USB Type A Female, 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green)
What's in the Box
ATEN 2-Port PS/2-USB VGA KVM Switch (CS82U), 2x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft), 1x User Instructions
Computer Connections
2
Port Selection
Hotkey, Pushbutton, USB Mouse

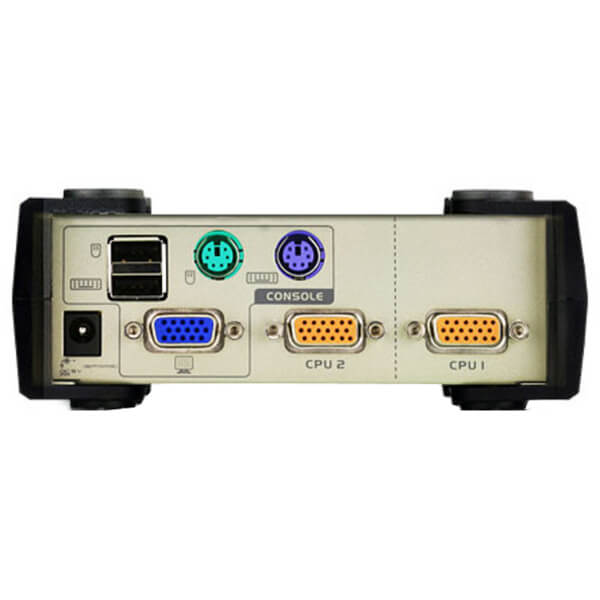

Connectors
Console Ports
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports
2 x SPHD-18 Female (Yellow)
Power
1 x DC Jack

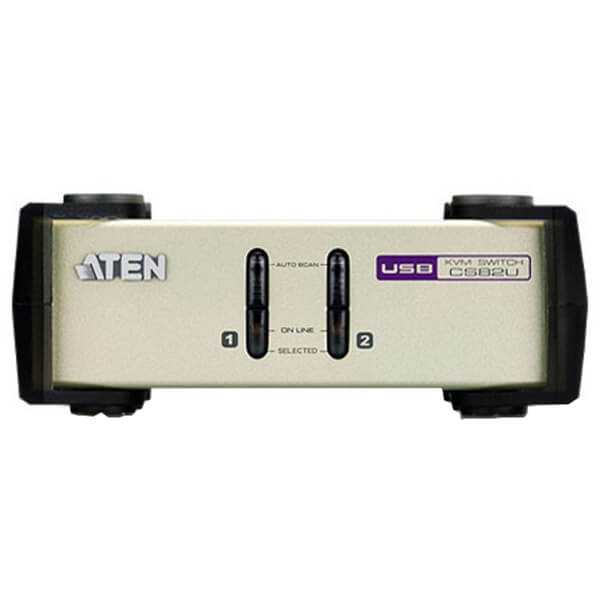

Switches
Selected
2 x Pushbutton
LEDs
Online
2 (Orange)
Selected
2 (Green)
Emulation
Keyboard / Mouse
PS/2, USB
Video
2048 x 1536 @ 60 Hz; DDC2B
Scan Interval
3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption
DC5V:0.72W:12BTU
Environmental
Operating Temperature
0 - 50Ā°C
Storage Temperature
-20 - 60Ā°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.54 kg ( 1.19 lb )
Dimensions (L x W x H)
14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
