Specifications

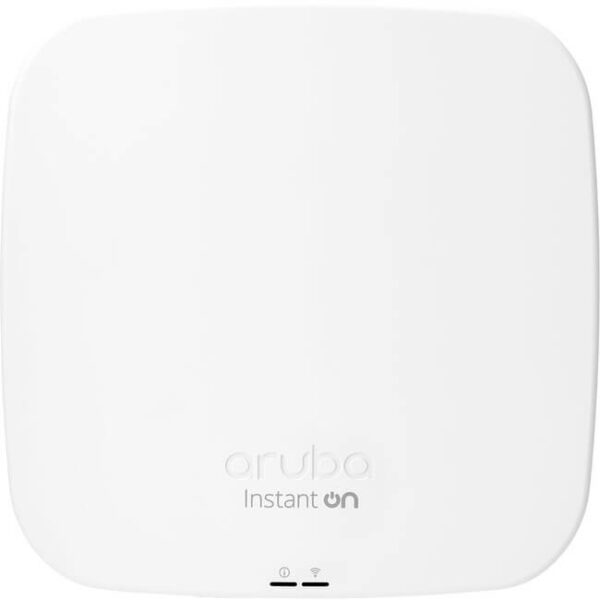

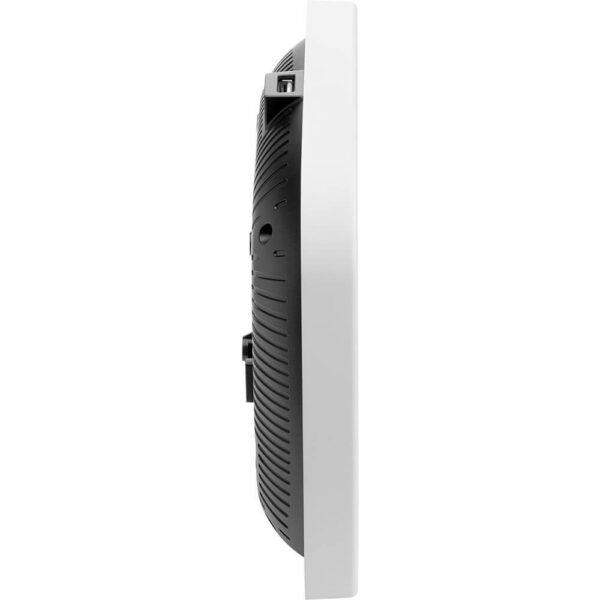

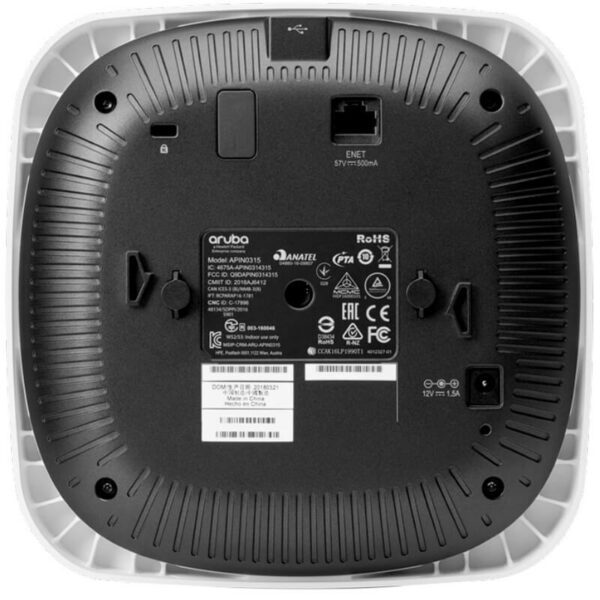

HPE Aruba Instant On AP15 (RW) Wireless Indoor Access Point (R2X06A)
What's in the Box
HPE Aruba Instant On AP15 Indoor Access Point (R2X06A), Aruba Instant On AP15 Quick Start guide, Ceiling rail mount clip, Solid surface mount clip, Ethernet Cable
Warranty
1 Year Collect, Repair & Return Warranty
Certifications
UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Input voltage
Power over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
Regulatory
UL2043 plenum rating
Wi-Fi antenna
Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz.
Connectivity, standard
IEEE 802.11ac, 802.11n
Ports
(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Mounting
The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)
Radio coverage
Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 4x4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Warranty
Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.
Differentiator
Aruba Instant On AP15 Indoor Access Points offer a reliable, affordable, and premium-grade Wave 2 802.11ac Wi-Fi experience for medium-density small business environments requiring high performance like boutique hotels and multi-level retail stores. These cost-effective access points are ideal for small businesses, scaling up to 25 access points without additional cost and complexity. Regulatory domain of Rest of World.
Weight
674 g (1.5 lb)
Dimensions
41 x 183 x 183 mm (1.6 x 7.2 x 7.2 in)
