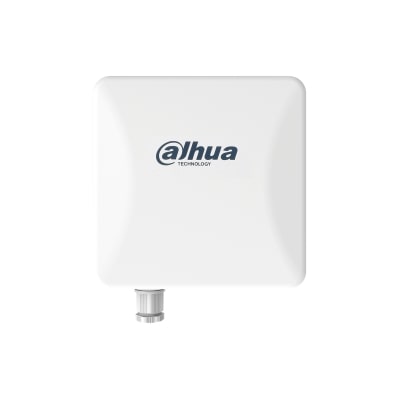

Dahua 5GHz AC867 20dBi Outdoor Wireless CPE (DH-PFWB5-10ac)

Technical Specification

Model
DH-PFWB5-10ac

Wireless
WLAN Standard
IEEE 802.11 a/n/ac
Radio Mode
MIMO 2x2

Radio Frequency Ban
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power
Up to 30 dBm (country dependent)

Receive Sensitivity
Varying between -95 and -64 dBm depending on modulation

Channel Size
5,10,20,40, 80 MHz

Modulation Schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data Rates
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error Correction
FEC, LDPC

Duplexing Scheme
Time division duplex

Transmission Distance
0-5km (recommended), max≥7km

Antenna Type
Integrated directional panel antenna

Antenna Gain
20dBi
Wired

Interface
10/100/1000 Base-T, RJ45

Software

Wireless Operating Modes
Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT)

Wireless Techniques
Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security
WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS
4 queues prioritization on TDMA

Network Operating Modes
Bridge, router iPv4, router IPv6

Network Techniques
Routing with and without NAT, VLAN

WAN Protocols
Static IP, DHCP client, PPPoE client

Services
DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management
HTTP(S) GUI, SSH, SNMP read, Telnet

Tools
Site survey, link test, antenna alignment

Physical

Dimensions
185mm (length)× 185mm (width )× 81mm (height )

Weight
400 g

Mounting
Pole mounting bracket included

Power

Power Supply
12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source
100 – 240V AC

Power Consumption (max)
10W

Environmental

Operating Temperature
-30°C ~ +70°C

Humidity
0 ~ 90 % (non-condensing)

Management

System Monitoring
SNMP, Syslog, Web UI, DWMP

Regulatory

Certification
FCC/CE

Internal Antenna

Frequency Range
5.1 - 5.9 GHz

Gain
20 dBi

Polarization
Dual linear

Cross-pol Isolation
27 dBi

VSWR
<1.8

Azimuth Beam Width (H pol)
10°

Azimuth Beam Width (V pol)
10°

Elevation Beam Width
10°
