Specifications

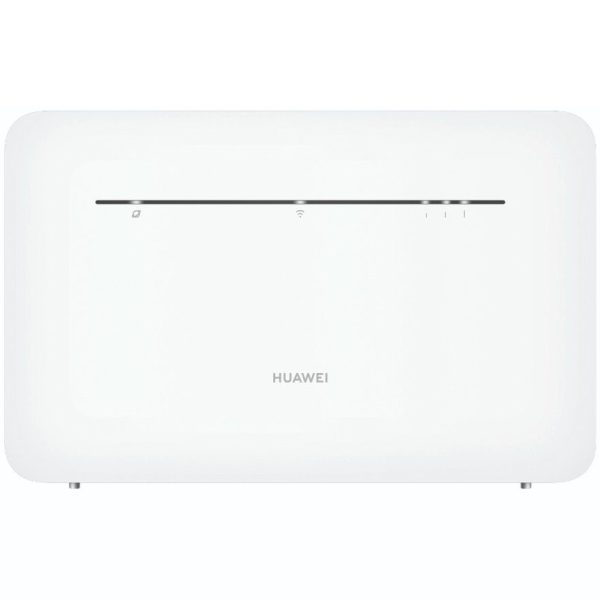

HUAWEI 4G Router 3 Pro B535-932a (51060HPX) – Data Transmission Rate: up to 1167Mbps, Operating Frequency: 2.4GHz / 5GHz, Connectivity: 1 x WAN, 3 x LAN, Sim Card Slot
What's in the Box
HUAWEI 4G Router 3 Pro B535-932a (51060HPX), Power Adapter, Socket, Quick Start
Warranty
1 Year Carry-in Warranty
5G/4G
Communication Standard: 3GPP Release 11, LTE CAT7
Applicable Network: 4G
4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
Antenna Type: LTE / UMTS main and diversity antennas
Environments
Temperature: Operating temperature: 0 Ā°C ~ 40 Ā°C, storage temperature: -20 Ā°C ~ +70 Ā°C
Humidity: 5% ~ 95% (non-condensing)
Wi-Fi
Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate: DBDC, 1167Mbps
Wireless Frequency Band: 2.4GHz & 5GHz, band steering
Antenna Type: Dual-band Wi-Fi antenna
Button
Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS
Power Supply
Power: < 12 W
AC / DC Power Supply: AC: 100 V - 240 V 50 Hz / 60 Hz, DC: 12V / 1A
LED Indicator
4G / Wi-Fi / Lan / Power / Signal Strength indicators

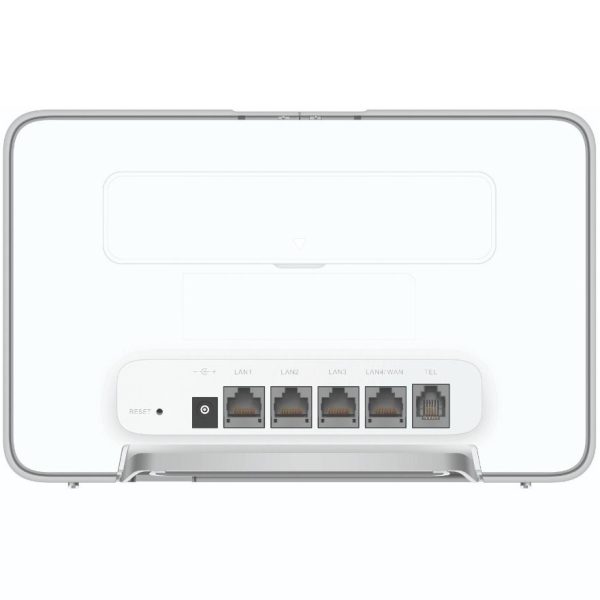

Network Port
1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Processors
Balong chip, Gigahome dual-band Wi-Fi chip
Antenna
Two 4G antenna extension ports, allowing users to purchase antennas
Packing List
HUAWEI 4G Router 3 Pro: 1 (standard configuration)
Power Adapter: 1 (standard configuration)
Socket: 1 (standard configuration)
Quick Start: 1 (standard configuration)
