Color
Black
Max Number of External Monitors
2
Weight
480 g (1.05 lbs)
Refresh Rate
DisplayPort: 3840 x 2160 @ 60 Hz, HDMI: 3840 x 2160 @ 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz,, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug
American Standard Plug Type B
Hardware Requirements
Machine with full function USB-C port or USB 3.0 Port
Output Power
90 W
Brand
ThinkPad
OS Requirements
Windows 11, Windows 10, Windows 7, macOS 13.0, macOS 14.0, ubuntu 22.04, ChromeOS
Agency Approvals
BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports
1 x 3.5 mm Stereo/Mic Combo Port
Charging Port
ThinkPad Slim-tip Port

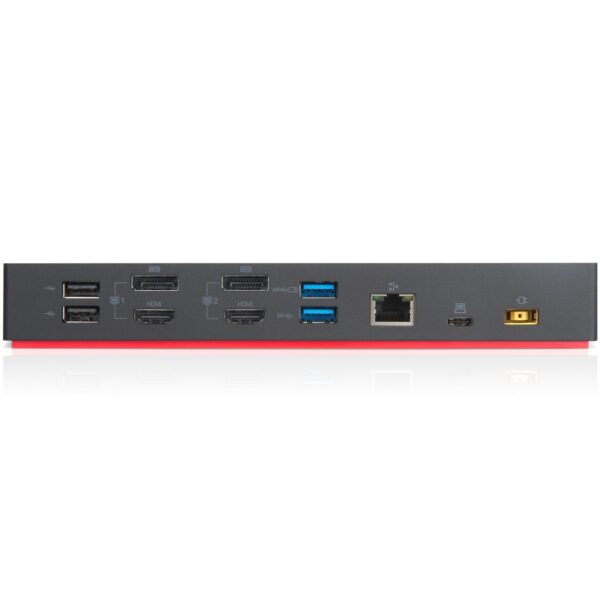

USB Ports
1 x USB-C (Data, 5V/3A power), 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on), 2 x USB 2.0
Video Ports
2 x DisplayPort 1.2, 2 x HDMI
Warranty Period
3 Years
Maximum Operating Temperature
35 degrees Celsius (95 degrees Fahrenheit)
Minimum Operating Temperature
0 degrees Celsius (32 degrees Fahrenheit)
Driver Needed
Preloaded in select ThinkPad laptops
Input Power
135 W
Power Button
Yes
Power Delivery
Yes
Compatibility
E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Other Information
ā¢ 3 x USB 3.1 gen2 (10Gbps, 1x always-on USB charging)
ā¢ 2 x USB2.0
ā¢ 1 x USB-C port (Data,5V 3A power)
ā¢ 1 x Gigabit Ethernet
ā¢ 2 x Display Port
ā¢ 2 x HDMI Port
ā¢ 1 x Stereo/Mic Combo Audio Port
