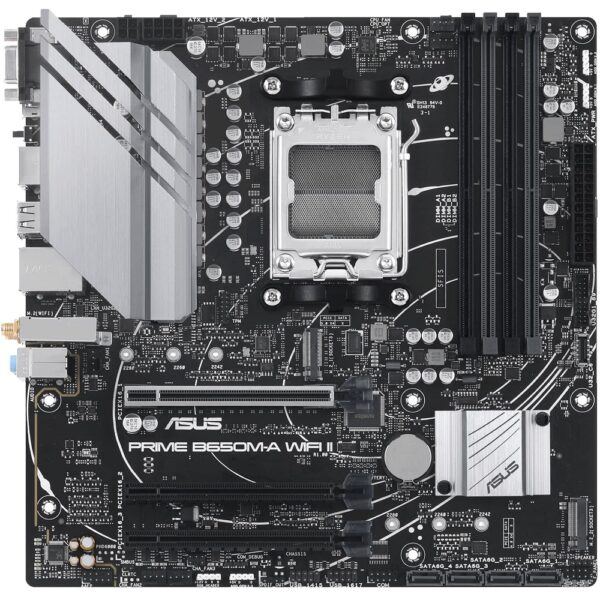

ASUS PRIME B650M-A WIFI II AM5 mATX Motherboard

Specifications

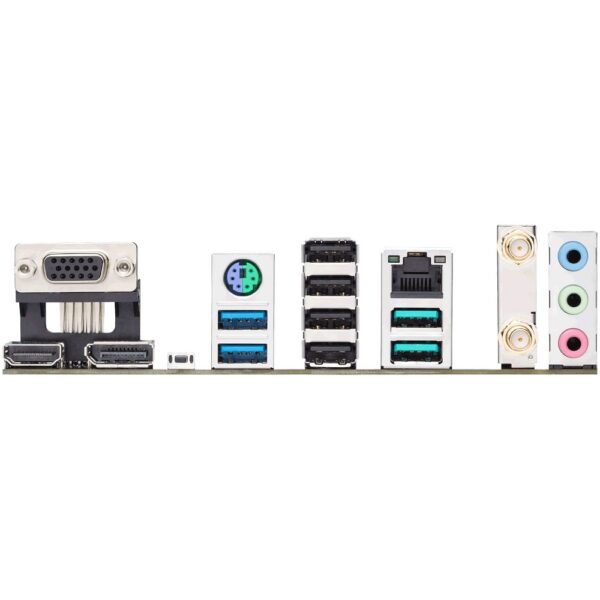

ASUS PRIME B650M-A WIFI II AM5 mATX Motherboard – CPU Support: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors, Chipset: AMD B650 Chipset, Memory: 4 x DIMM, Max. 192GB, DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), Expansion Slots: 1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x1 mode), Storage: M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Ethernet: 1 x Realtek 2.5Gb Ethernet, Wireless & Bluetooth: 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, Back Panel I/O Ports: 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port, Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports), 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Form Factor: mATX 9.6-inch x 9.6-inch (24.4 cm x 24.4 cm)

What's in the Box

ASUS PRIME B650M-A WIFI II AM5 mATX Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x Screw Package for M.2 SSD, 1 x User guide
