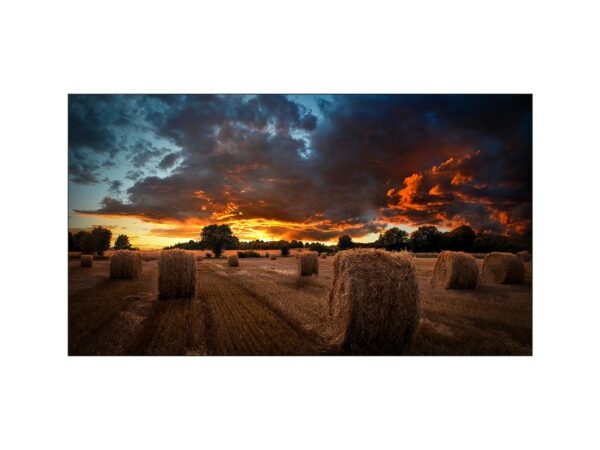

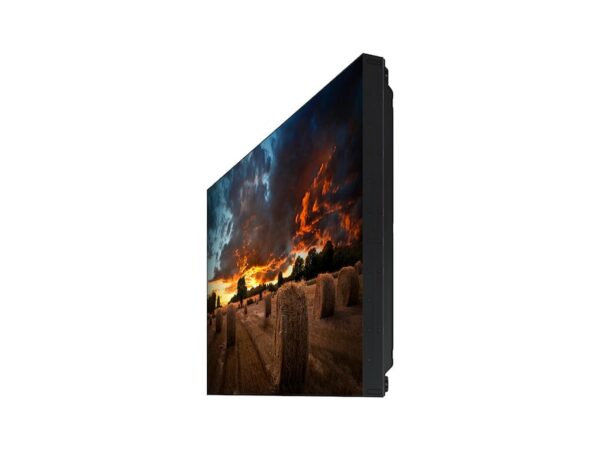

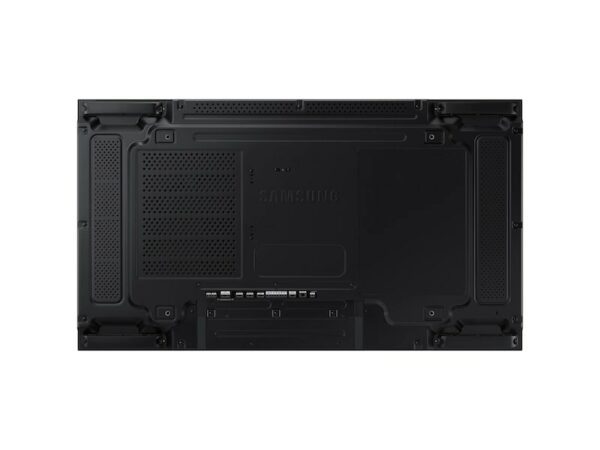

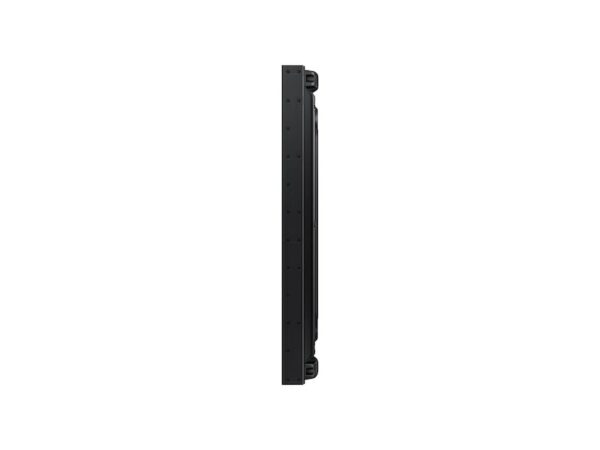

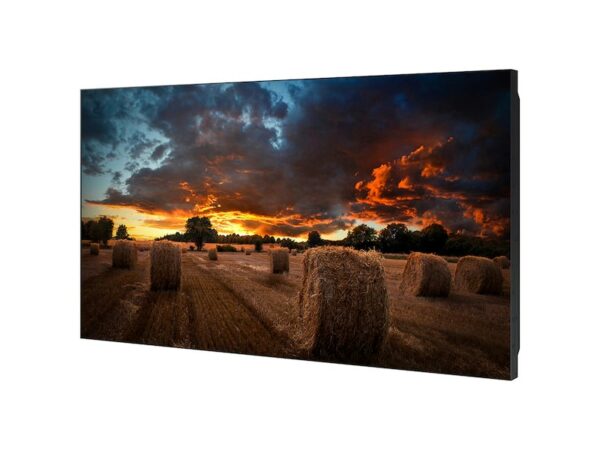

Name: Samsung VMB-U 46" Full HD Ultra Narrow Bezel Video Wall Display (LH46VMBUBGBXEN)
Brand: Samsung
SKU: LH46VMBUBGBXEN
Availability: OutOfStock

Specifications

Samsung VMB-U 46″ Full HD Ultra Narrow Bezel Video Wall Display (LH46VMBUBGBXEN) – Resolution: 1920 x 1080 IPS, Contrast Ratio: 1200:1, Aspect Ratio: 16:9, Brightness: 500nit, Connectivity: Input: 2 x HDMI 2.0 In, 1 x DisplayPort 1.2 In, 1 x DVI In, 1 x USB, IR In, Audio In, Audio Out, Video Out, RS232, RJ-45, Wall Mountable: VESA Mount (600 x 400mm)

What's in the Box

Samsung VMB-U 46" Full HD Ultra Narrow Bezel Video Wall Display (LH46VMBUBGBXEN), Power Cable, Documentation

Warranty

2 Year Collect, Repair & Return Warranty

Display
Diagonal Size
46"

Panel Type
IPS

Resolution
1,920 x 1,080

Pixel Pitch (HxV)
0.53x0.53

Brightness (Typ)
MAX 500 nit

Contrast Ratio
1,200:1

Viewing Angle (Horizontal/Vertical)
178/178

Response Time
8ms

Colour Gamut
72 %

Glass Haze
25 %

H-Scanning Frequency
62.7~72.3kHz

Maximum Pixel Frequency
82MHz

V-Scanning Frequency
57~63Hz

Contrast Ratio (Dynamic)
45,000:1

Operation Time Support
24/7

Connectivity
HDMI In
2

DP In
1

DVI In
Yes

Version of HDMI
2

Version of DP
1.2

Version of HDCP
2.2

USB
1

IR In
Yes

Audio In
Yes

Audio Out
Stereo Mini Jack

Video Out
Yes

Video Out
No

RS232 In
Yes

RS232 Out
Stereo Mini Jack

RJ45 In
Yes

Power
Power Supply
AC100-240V 50/60Hz

Power Consumption (On Mode)
160 W

Power Consumption (Sleep Mode)
0.5 W

Dimension
Set Dimension (WxHxD)
1022 x 577 x 69.9 mm

Package Dimension (WxHxD)
1193 x 719 x 257 mm

Weight
Set Weight with Stand
15.7 kg

Package Weight
22.2 kg

Operation Conditions
Temperature
0℃~ 40℃

Humidity
10 ~ 90%

Mechanical Specification
VESA Mount
600 x 400 mm

Bezel Width
2.25mm(U/L), 1.25mm(R/B)

Frame Material
Glossy

Optional Feature
Mount
Yes

Stand
No

Eco
Energy Efficiency Class
G

Certification and Compliance
EMC
FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005

Safety
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
