Display
Type
IPS
Screen Size
55"
Measured
54.6"/138.7cm
Resolution
1920 x 1080 (16:9)
Pixel Pitch
0.63x0.63
Active Display Area
1209.6(H) x 680.4(V)
Brightness
500nit
Contrast Ratio (Dynamic)
100,000:1
Operation Hours
24/7
Color Gamut
72
Haze
28%
Contrast Ratio
1000:1

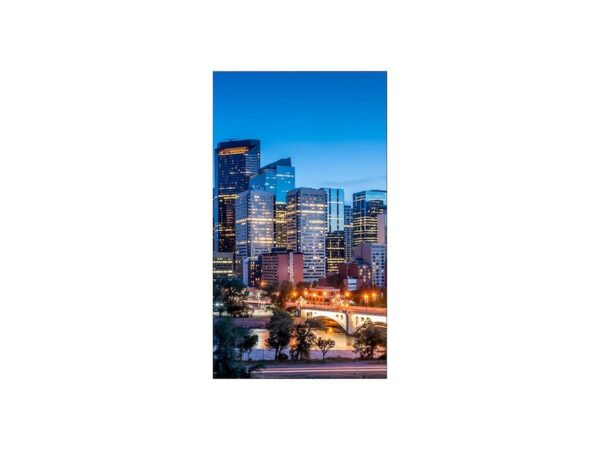

Orientation
Landscape / Portrait
Connectivity
VIDEO Input
HDMI 2.0 (2) /DVI-D, Display Port 1.2
AUDIO Input
Stereo mini Jack
USB Input
Only F/W upgrade
AUDIO Output
Stereo mini Jack
External Control
RS232C(in/out), RJ45 in
Video Output
DP1.2(Loop-out)
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Sleep Mode
less than 0.5W
Power Consumption Max[W/h]
220
Power Consumption Typical[W/h]
133
Features
Key
Extreme Narrow Bezel
Special H/W
ACM Support (Advanced Color Management) Temperature Sensor Video Wall Daisy Chain(10x10) DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support) Clock Battery (168hrs Clock Keeping)
Special S/W
Auto Source Switching & Recovery RS232C/RJ45 MDC Button Lock Smart F/W update
Accessories
Included in Box
Quick Setup Guide Warranty Card Power Cord RS232C(IN) Gender (Stereo to DB-9) Remote Controller + Batteries DP cable
Optional Wall Mount Kit
WMN-55VD
Mechanical Specs
VESA Mount
600 x 400
Set Dimension (mm)
1212.2 x 683 x 70.4
Package Dimension (mm)
1398 x 844 257
Set Weight (kg)
19.5
Package Weight (kg)
28.6
VESA Mount Screw (Min~Max)
M8, 8~15
Bezel Width (mm)
B2B: 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A: 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
Certification
Safety
60950-1
EMC
Class B
IP Rating
IP5x
Operating Condition
Temperature
0℃~ 40℃
Relative Humidity
10~80%
