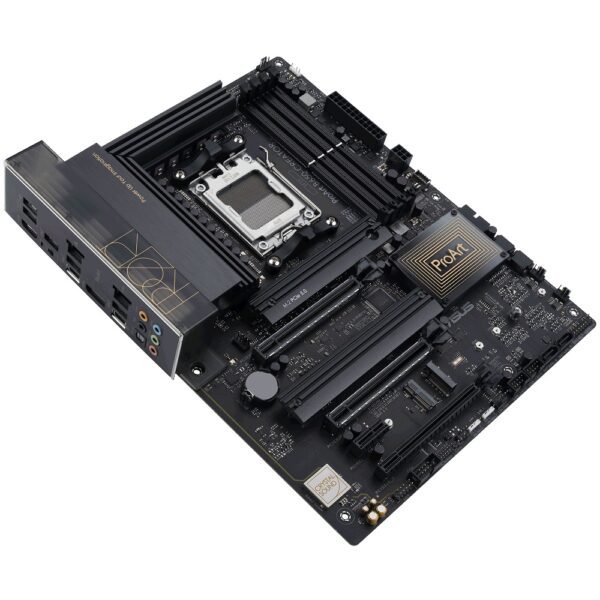

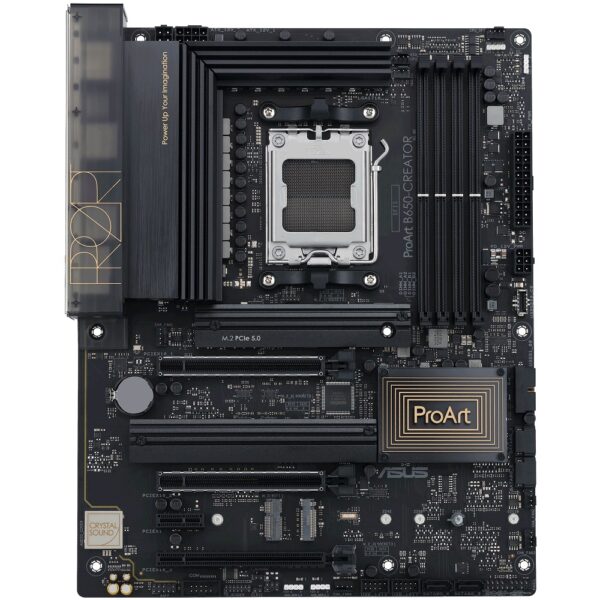

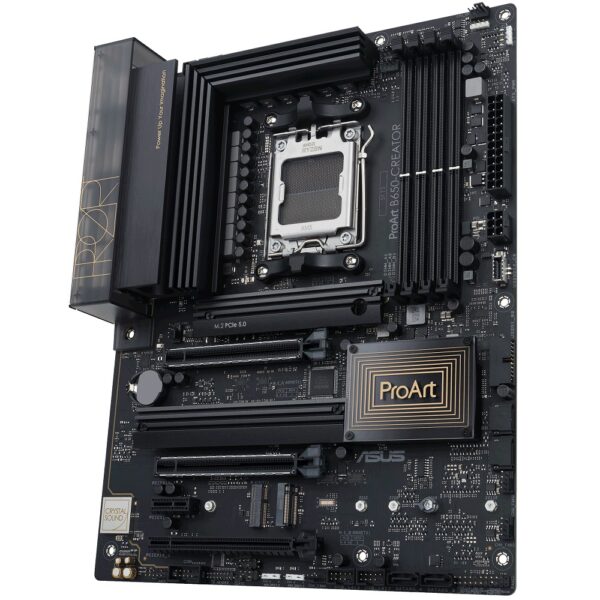

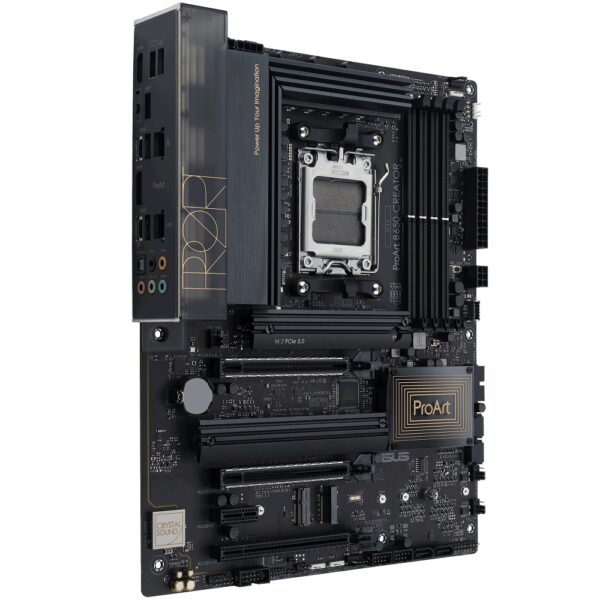

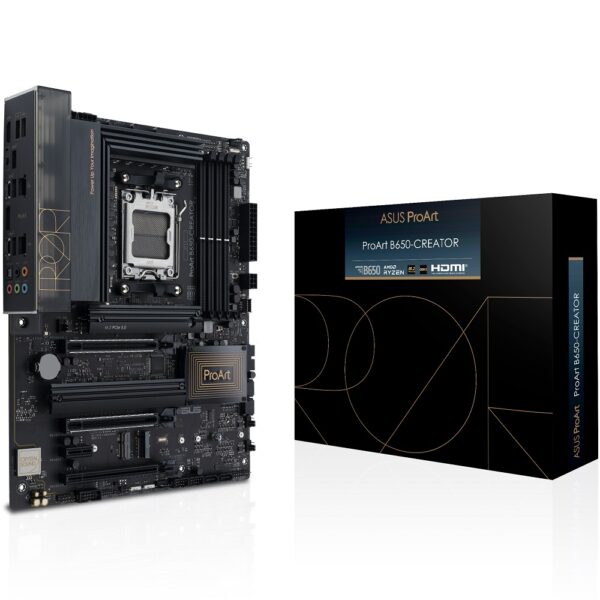

ASUS ProArt B650-CREATOR AM5 ATX Motherboard

Specifications

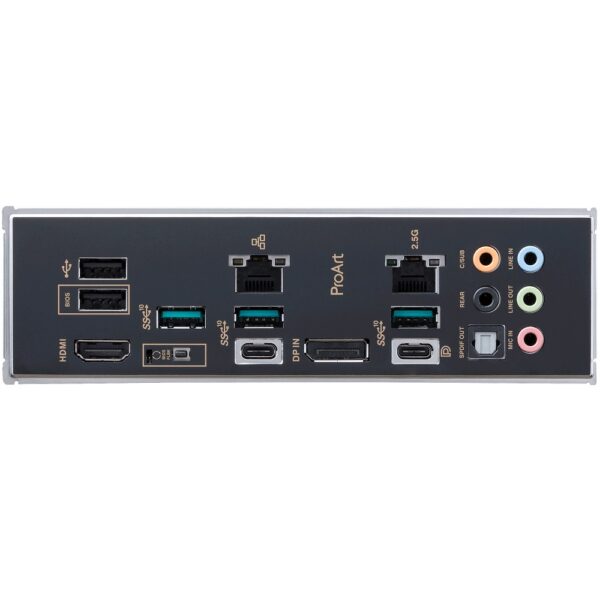

ASUS ProArt B650-CREATOR AM5 ATX Motherboard – CPU Support: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors, Chipset: AMD B650, Memory: 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), Expansion Slots: 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot, Storage: M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Ethernet: 1 x Realtek 2.5Gb Ethernet, 1 x Realtek 1Gb Ethernet, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, Back Panel I/O Ports: 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort (Input only), 1 x HDMI port, 1 x Realtek 2.5Gb Ethernet, 1 x Realtek 1Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 1 x 6-pin PCIe Power connector, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x M.2 slot (Key E), 1 x 20-5 pin System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt (USB4) header, BIOS: 256Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Form Factor: ATX 12-inch x 9.6-inch (30.5 cm x 24.4 cm)

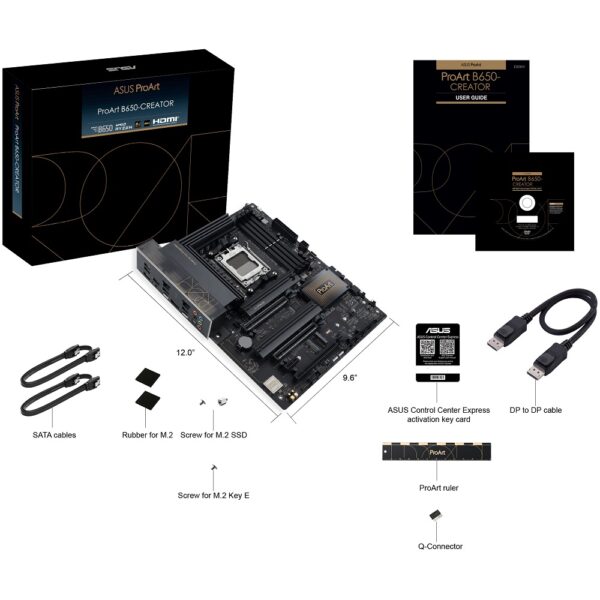

What's in the Box

ASUS ProArt B650-CREATOR AM5 ATX Motherboard, 1 x DisplayPort cable, 2 x SATA 6Gb/s cables, 1 x Q-connector, 1 x Rubber Packages for M.2, 1 x Screw packages for M.2 SSD, 1 x Screw package for M.2 Key E, 1 x ProArt ruler, 1 x ACC Express Activation Key Card, 1 x User guide
