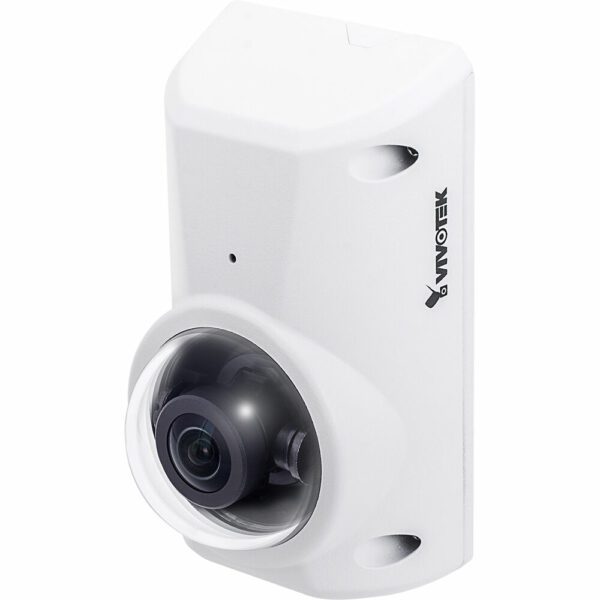

VIVOTEK Outdoor IK10 180 Degree 5Mp Camera (CC9380-HV)

Name: VIVOTEK Outdoor IK10 180 Degree 5Mp Camera (CC9380-HV)
Brand: Vivotek
SKU: CC9380-HV
Availability: InStock

SKU: CC9380-HV

R7,239.00 Incl. VAT

In stock

Delivered in 2-5 business days

Delivery Information

Region	Delivery ETA
Randburg, Sandton & Midrand	2 – 3 business days
Rest of Gauteng	2 – 4 business days
KZN	2 – 4 business days
Western Cape	3 – 5 business days
Mpumalanga	2 – 4 business days
North West	2 – 4 business days
Free State	2 – 4 business days
Limpopo	2 – 4 business days
Eastern Cape	3 – 5 business days
Northern Cape	3 – 5 business days

Orders over R1000.00 are delivered free of charge, see full details here.
Above delivery times apply if orders are placed before 10am.
Delivery may take longer to outlying and rural areas.
Overnight delivery service to main centres available on selected products. Additional courier costs will apply, enquire with us.
Same day collection is possible for products in stock at our warehouse, call us on 011 234 3330 to confirm availability before coming through.
Warehouse located at 992 Meadowbrook Business Estate, Jacaranda Avenue, Olivedale, Randburg, Johannesburg, 2188

Add to wishlist

Request a Quote Volume Discount

Specifications

VIVOTEK Outdoor IK10 180 Degree 5Mp Camera (CC9380-HV) – CPU: Multimedia SoC (System-on-Chip), Flash: 256 MB, RAM: 512 MB, Max. Resolution: 2560 x 1920 (5MP), Lens Type: Fixed-focal, Shutter Time: 1/5 sec. to 1/32,000 sec, Storage: Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS), Maximum Streams: 3 video streams (Up to 8 configurable profiles), Users: Live viewing for up to 10 clients, Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45), Connectors: RJ-45 cable connector for 10/100 Mbps PoE network connection Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only), Web Browser: Chrome 58.0 or above, Internet Explorer 10/11

What's in the Box

VIVOTEK Outdoor IK10 180 Degree 5Mp Camera (CC9380-HV), Documentation

Technical Specifications

System Information

Model

CC9380-HV

CPU

Multimedia SoC (System-on-Chip)

Flash

256 MB

RAM

512 MB

Camera Features

Image Sensor

1/2.7" Progressive CMOS

Max. Resolution

2560x1920 (5MP)

Lens Type

Fixed-focal

Focal Length

f = 1.45 mm

Aperture

F2.2

Iris Type

Fixed iris

Field of View

180° (Horizontal)

120° (Vertical)

180° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

Minimum Illumination

0.11 lux @ F2.2 (Color)

0.01 lux @ F2.2 (B/W)

Tilt Range

±25°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDKC card and recording to network-attached storage (NAS)

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

H.265:

20 fps/30 fps @ 2560x1920 (WDR Pro on/off)

H.264:

20 fps/25 fps @ 2560x1920 (WDR Pro on/off)

MJPEG:

20 fps/20 fps @ 2560x1920 (WDR Pro on/off)

Maximum Streams

3 video streams (Up to 8 configurable profiles)

S/N Ratio

62 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bitrate; Smart Stream III

Image Settings

General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask: Scheduled profile settings

Audio

Audio Capability

One-way Audio

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10Base-T/100 BaseTX Ethernet (RJ-45)

*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

VADP Package

Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event

Event Trigger

Audio detection, Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

Event Action

Event notification via email, HTTP, FTP, NAS server, SD card, push notification

File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 1

Power Consumption

Max. 5 W
